Goal Zero Guide 10 Plus Adventure Kit

List Price: $159.99 You Save: 25%
Our Price: $119.95
  • Specs

Our best selling kit is capable of charging your smartphone, GPS, iPod, or other hand-held device directly from the sun in 1-2 hours via the Nomad 7 Solar Panel. Or charge up the Guide 10 Plus battery pack and then recharge your phone later 1-3 times.



Bullets:

   Keep your power hungry phone juiced and ready to use.

   More Angry Birds! Power up your tablet for 25% longer.

   Never buy batteries again. Recharge AA or AAA batteries from sun.

   Small, light, and compact. Power up anywhere.

   Handy built-in LED flashlight to search your dark backpack or purse.

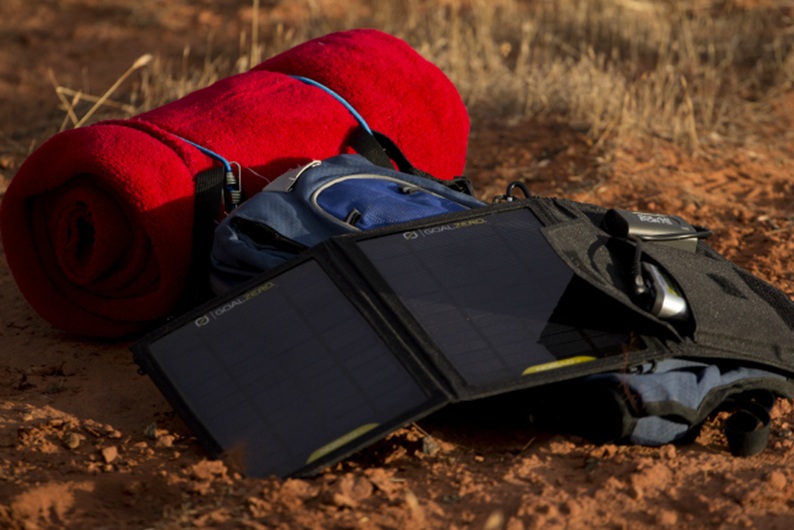

   Nomad 7 Solar Panel is rugged and portable. Pocket protects gear while charging.

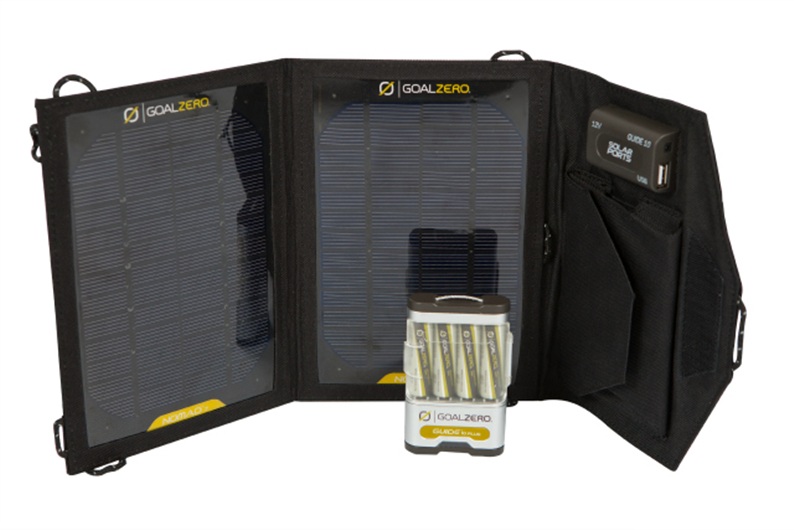

Kit Includes:

   Nomad 7 (7 watts) Solar Panel

   DC adapter cable

   USB cable

   Solar Cable

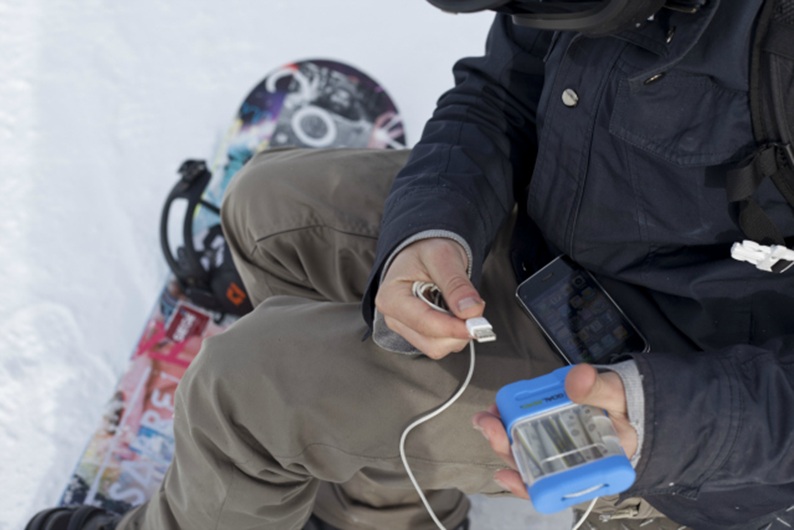

   Guide 10 Plus battery pack

   4 AA rechargeable batteries



Tech Spec: Guide 10 plus battery pack



Charges from the following: Approx. Charge Time:



Any USB Power Source: 8-10 hours

GOAL ZERO Nomad 3.5 (solar port): 6-8 hours

GOAL ZERO Nomad 7 (solar port): 2-4 hours

INPUTS

USB: mini port 5V, 0.7A max (3.5W)

Solar port: 6.5V, 1.5A max (7W)

OUTPUTS

Batteries

4 x AA or AAA** NiMH cells

USB: Standard Port 5.0V, 1.0A max (5W)

Flashlight: 100mW white LED, 100+ hours*

INTERNAL

Battery Capacity: 10 Wh*, use only NiMH cells

Lifespan: hundreds of cycles*

Shelf Life: 12 months*

GENERAL

Weight w/Batteries: 0.4 lbs (0.18 kg)

Dimensions: 2.5 x 4 x 0.75 in (6 x 10 x 2 cm)

Warranty: 12 Month

Certifications: FCC and CE

Optimal Operating Temp.: 32-104 F (0-40 C)

*When using GOAL ZERO NiMH rechargeable low self-discharge AA cells.

**AAA Cells require an adapter, which is included with AAA battery purchase.



Tech Specs:Nomad 7 solar panel

Approx. Charge Time:



GOAL ZERO Guide 10 Plus: 2-4 hours

Cell phone, MP3 player: 1-3 hours

Smart phone, GPS, USB camera: 2-4 hours



INPUTS

Solar Panel Rated Wattage: 7W

Cell Type: Monocrystalline

Open-circuit voltage: 6.5-7V

Converting Efficiency: 17-18%

Cell Area: 0.0394 m2

OUTPUTS

USB Port: 5V, 1.0A max (5W), linear regulated

12V Port: 13-15V, 0.2A max (3W), boost regulated

Solar Port (for Guide 10): 6-6.5V, 1.0A max (6W), not regulated

GENERAL

Weight (no pkg): 0.8 lbs (0.36 kg)

Dimensions (folded): 6 x 9 x 1 in (15 x 26 x 2.5 cm)

Dimensions (unfolded): 17 x 9 x 0.1 in (43 x 23 x 0.25 cm)

Warranty: 12 Months

Certifications: FCC and CE

Optimal Operating Temp.: 0-120 F (-17-48 C)
